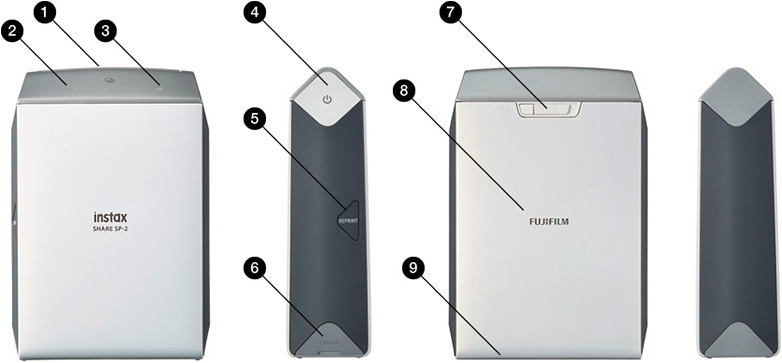

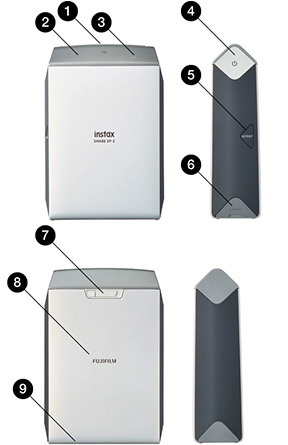

• 1Photo exit
  • 2Film remaining LED indicator
  • 3Battery remaining LED indicator
  • 4POWER button
  • 5REPRINT button
  • 6USB connector cover (USB connector)
  • 7Back cover lock
  • 8Back cover
  • 9Battery cover

Print exit

Battery cover


Recording method 3-color exposure with OLED
Film Fujifilm INSTAX mini instant color film (sold separately)
Photo capacity 10 photos/pack
Image size 62 mm x 46 mm
Supported image size 800 x 600 dots
Printing resolution 320 dpi
Printing levels 256 levels per color (RGB)
Interface Standard compliance IEEE802.11b/g/Operation frequency/ 2.4 GHz (5 GHz is not supported.)
Supported image format JPEG, PNG
Printing time Image recording - photo output (Feed out) Approx. 10 sec.
Approximate printing capacity Approx. 100 prints (Based on our test conditions)
* Varies depending on the conditions of use.
Power supply NP-45S (1 piece)
Charging time Approx. 90 minutes (Varies depending on battery remaining level)
Power consumption 2W
Operating temperature +5°C to +40°C/+41°F to +104°F (no condensation)
Dimensions 89.5 mm x 131.8 mm x 40 mm (excluding projections)
Weight 250 g (without battery and film pack)
Supplied accessory USB cable (BOB711)

* Specifications above are subject to change

* You can connect up to 8 devices to the printer. However, you cannot print an image from another device while printing is in progress.

* The color of the photo may seem different from that displayed on your device.
