Parts Name
- Battery remaining LED
- Film remaining LED

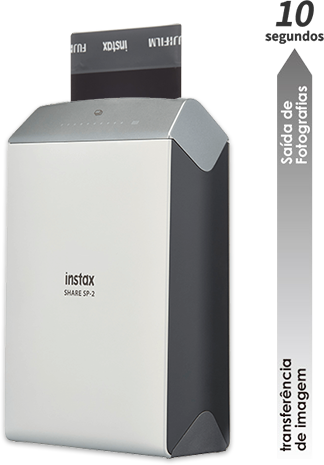

- Print exit
- POWER button
- USB connector cover
- USB connector
- Back cover lock
- REPRINT button
- Battery cover
- Back cover

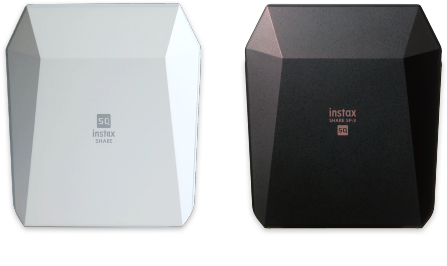

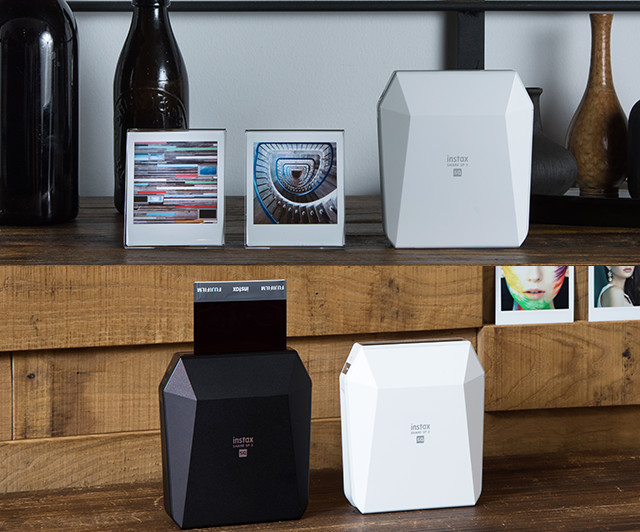

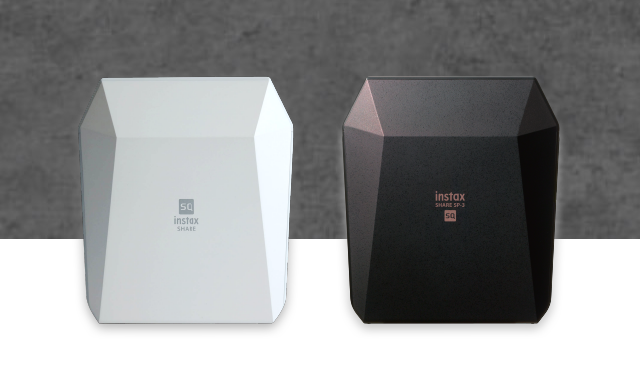

Color Variation
-
-
White
Black
Especificações
- Recording method
- 3-color exposure with OLED
- Film
- FUJIFILM Instant Film “instax SQUARE” (Purchased separately)
- Photo capacity
- 10 prints/pack
- Image size
- 62 mm×62 mm/2.4 in.×2.4 in.
- Supported image size
- 800 x 600 dots
- Printing resolution
- 12.5 dots/mm (318 dpi, 80 μm dot pitch)
- Printing levels
- 256 levels per color (RGB)
-
Interface Standard compliance
-
Standard compliance: IEEE802.11b/g/n
Operation frequency: 2412 MHz to
2462 MHz (11 ch) - Supported image format
- JPEG, PNG
- Printing time
-
Image recording - photo output (fed out):
Approx. 13 sec. -
Approximate
printing capacity
-
Approx. 160 prints
(Based on our test conditions)
* Varies depending on the conditions of use. - Power supply
- NP-50 (1 piece)
- Charging time
- Approx. 3 hours (Varies depending on battery remaining level)
- Power consumption
- 3W
- Operating
temperature -
+5°C to +40°C/+41°F to +104°F
(no condensation) - Dimensions
-
116 mm × 130.5 mm × 44.4 mm/4.6 in. ×
5.1 in. × 1.7 in. (excluding projections) - Weight
- 312 g/11 oz. (without battery and film pack)
- Supplied accessory
- USB cable (BOB711, Length: 1 m/3.3 ft.),ferrite core
- Declaração de conformidade
-
FCC_Declaration of Conformity_SP-3
EU_Declaration of Conformity_SP-3
* As especificações acima estão sujeitas a mudança* Você pode conectar até 8 dispositivos à impressora. No
entanto, não é possível imprimir uma imagem de outro
dispositivo enquanto a impressão ocorre.* A cor da foto pode ser diferente daquela exibida no seu
dispositivo.
