SPEC

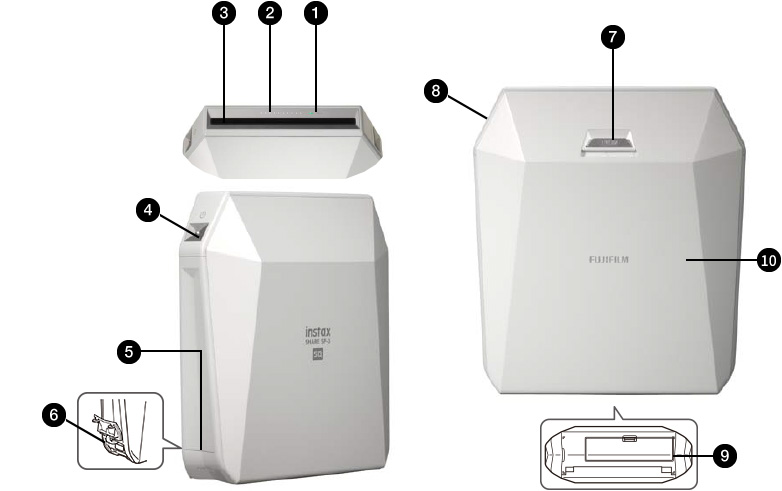

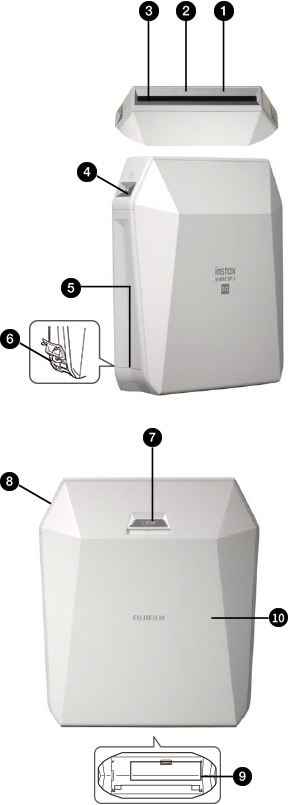

Parts Name

instax SHARE SP-3

instax SHARE SP3 SQinstax SHARE SP3 SQ
  • Battery remaining LED
  • Film remaining LED
  • Print exit
  • POWER button
  • USB connector cover
  • USB connector
  • Back cover lock
  • REPRINT button
  • Battery cover
  • Back cover

Color Variation

instax SHARE SP3 SQ

WhiteWhite

BlackBlack

Specifications

instax SHARE SP-3 SQ

Recording method
3-color exposure with OLED
Film
FUJIFILM Instant Film “instax SQUARE” (Purchased separately)
Photo capacity
10 prints/pack
Image size
62 mm×62 mm/2.4 in.×2.4 in.
Supported image size
800 x 600 dots
Printing resolution
12.5 dots/mm (318 dpi, 80 μm dot pitch)
Printing levels
256 levels per color (RGB)
Interface Standard compliance

Standard compliance: IEEE802.11b/g/n
Operation frequency: 2412 MHz to
2462 MHz (11 ch)
Supported image format
JPEG, PNG

Printing time

Image recording - photo output (fed out):
Approx. 13 sec.
Approximate
printing capacity

Approx. 160 prints
(Based on our test conditions)
* Varies depending on the conditions of use.
Power supply
NP-50 (1 piece)
Charging time
Approx. 3 hours (Varies depending on battery remaining level)
Power consumption
3W
Operating
temperature
+5°C to +40°C/+41°F to +104°F
(no condensation)
Dimensions

116 mm × 130.5 mm × 44.4 mm/4.6 in. ×
5.1 in. × 1.7 in. (excluding projections)
Weight
312 g/11 oz. (without battery and film pack)
Supplied accessory
USB cable (BOB711, Length: 1 m/3.3 ft.),ferrite core
Konformitätserklärung
FCC_Declaration of Conformity_SP-3
EU_Declaration of Conformity_SP-3
* Änderungen vorbehalten für o. a. technische Daten* Sie können bis zu 8 Geräte an den Drucker anschließen. Sie können jedoch kein Bild von einem anderen Gerät drucken während der Druck läuft.* Die Farbe des Fotos kann sich von der auf Ihrem Gerät angezeigten leicht unterscheiden.
